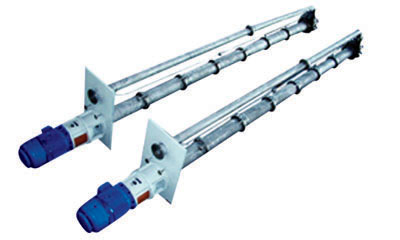

Submersible sewage pump with long shaft “LW” Series

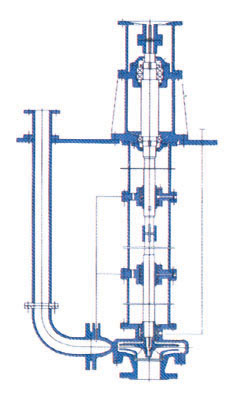

Design：Single-stage , single-suction submersible centrifugal pumps, There are two groups roller bearings to improve rigidity which beyond the liquid.Self-lubrication or out-lubrication introduced in plain beraring. Performance datas according to ISO 2858.

Service：Pumping slightly polluted liquids in chemical , steel , sewage treatment plants.

DN: 25~200mm

Q: ~400m³/h

H: ~56m

t: ~125℃

Submersible depth: ~5125mm，with suction-pipe to get to 5625mm
