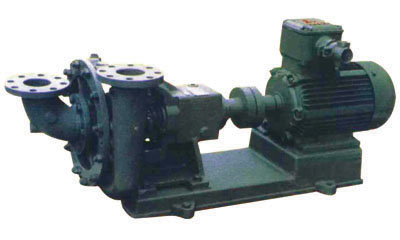

Self-suction pumps “WDH” Series

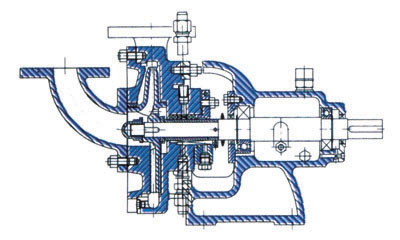

Design: Single-stage, single-suction horizontal cantilever centrifugal pumps. According

                to technetronic in Japan design, semi-open or open impeller.

Service: Pumping clean or slightly polluted chemically neutral or aggressive liquids,

               especially applies to gas-liquid mixture, switch on and off frequently and shifts

               working conditions.

DN: 40~250mm

Q: 8~400m³/h

H: 8~78m

t: -20℃~+125℃

P: ~1.6MPa

Max degree of vacuum: 500~700mmHg
